Compression Latching Hinge with Safety Catch Keyed IL101

2651-400080
Tuotemerkki: Industrilås

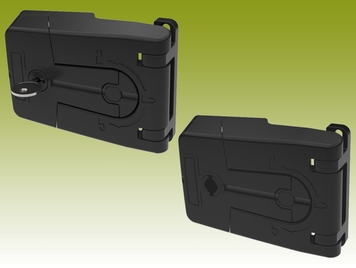

Compression Latching Hinge with Safety Catch Keyed IL101

Offset 10mm

180º Hinge-Latch, or latching hinge that may be used as hinge or latch according to need. Allows you to open door as left- or right hinged door, or to remove door completely. Universal left- and right assembly. Provides 6 mm compression and has a built-in safety catch for safe opening of pressurized doors. Patented with registered design.

Clicks into distinct open and closed position for tactile feedback.

Vertical adjustability together with guidance between door and frame parts, makes it easier than ever to get the perfect sealed door. Available in non-locking, push-button, keyed and tool operated version. Also customizable with your logotype.

Note that a normal panel will need four units in order to operate as either left-open, right open, or completely removable. Mount the door part with blind rivets (pop-rivets). The frame part may be mounted with screws or blind rivets.

No problems with thermal break as units are surface-mounted on to door and frame parts, resulting in no parts intruding through the double skinned doors.
